SHACMAN working condition technology: relying on millions of operation data and 31 markets over 99% road condition characteristic is mapped out with accurate calibration of powertrain, transmission system and emission control strategy.
High efficiency powertrain technology: equipped with WP13H engine with global thermal efficiency of over 50%, new smart AMT and drive axle, precise powertrain coupling achieving vehicle power transmission of over 99.7% efficiency.
Predictive power control: Based on the big data of different road conditions such as plain, hill and mountainous areas, the new and accurate integration of shift strategy, engine map, throttle map and thermal management strategy achieves the power system control of different terrain and achieves ultra-low fuel consumption.
Intelligent heat management technology: intelligent control of temperature control accessories, to realize the optimal water temperature intelligent control of different environment and different road conditions: The widest heat dissipation module in the industry with 63 square meter of heat dissipation effectiveness. Integrated multi-channel radiator with 41% water resistance reduction. Asymmetric rectifier intercooler with 18% reduction of air resistance. Large curved annular fan with air volume increased by 20%. Fully sealed flexible air baffle with cooling capacity increased by 2 ℃ - 3 ℃.
External flow field optimization technology: low drag body + adjustable top air deflector + electronic rear-view mirror + optimal matching of main suspension + vehicle bottom air deflector + wheel guide are applied to optimize the external flow field of the whole vehicle and reduce the wind resistance of the whole vehicle by 15%.

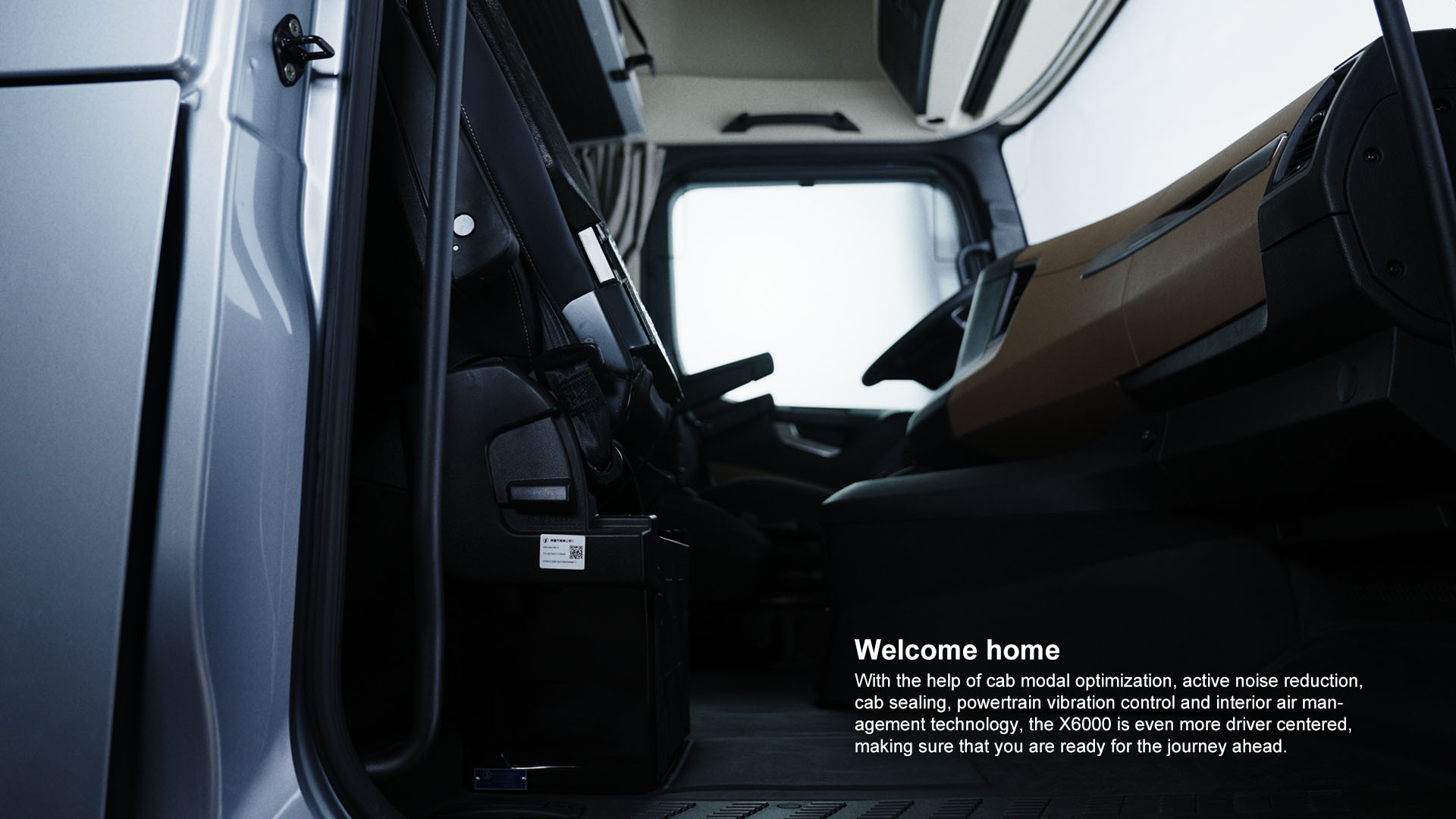

Driver centered, cab modal optimization, active noise reduction, body sealing, powertrain vibration control and indoor air management technology. With the help of flat floor and 1000L super large storage room, the vehicle has become a spacious, comfortable, and intelligent home.
Modal optimization technology: with the help of modal big data analysis of typical vehicle models, X6000 BIW has achieved 22Hz modal and 30% performance improvement through topology optimization, shape optimization, shape optimization and size optimization, which is comparable to European and American international heavy truck.
Active noise reduction technology: autonomous multi-channel control algorithm and adaptive filter, active noise reduction processing, driver ear noise reduction of 5dB to 10dB
Body sealing technology: BIW laser welding, cavity partition technology, patented double seal technology, cab sealing is 30% better than the domestic level.
Powertrain vibration control technology: flameout speed control strategy, improve the speed reduction rate, reduce flameout vibration by 70%.
Interior air management technology: the air purification system and indoor air quality of vehicle specification level are better than 90% of the industry standard, and the odor is 2.5. At the same time, the air purification system is the first, with multi-stage filtration, sterilization and haze removal, real-time purification and dynamic display, providing intimate companionship for drivers and passengers.
Enjoy the super large flat space: 2130 mm high from the flat floor, 1000 liter large storage room, meet the driving, entertainment, cooking, washing, accommodation, etc., think what you want, understand what you need.
Brake collaborative control technology: the highest system pressure in the industry with 1.3mpa, with optimal module topology design, collaborative control, shortening the braking distance by 4%; Three dimensional application of engine braking + hydraulic retarder + wheel side braking strategy.
Handling and stability control technology: lateral stability stiffness control + variable ratio linear steering + multi-body dynamics optimization, roll stability increased by 30%.

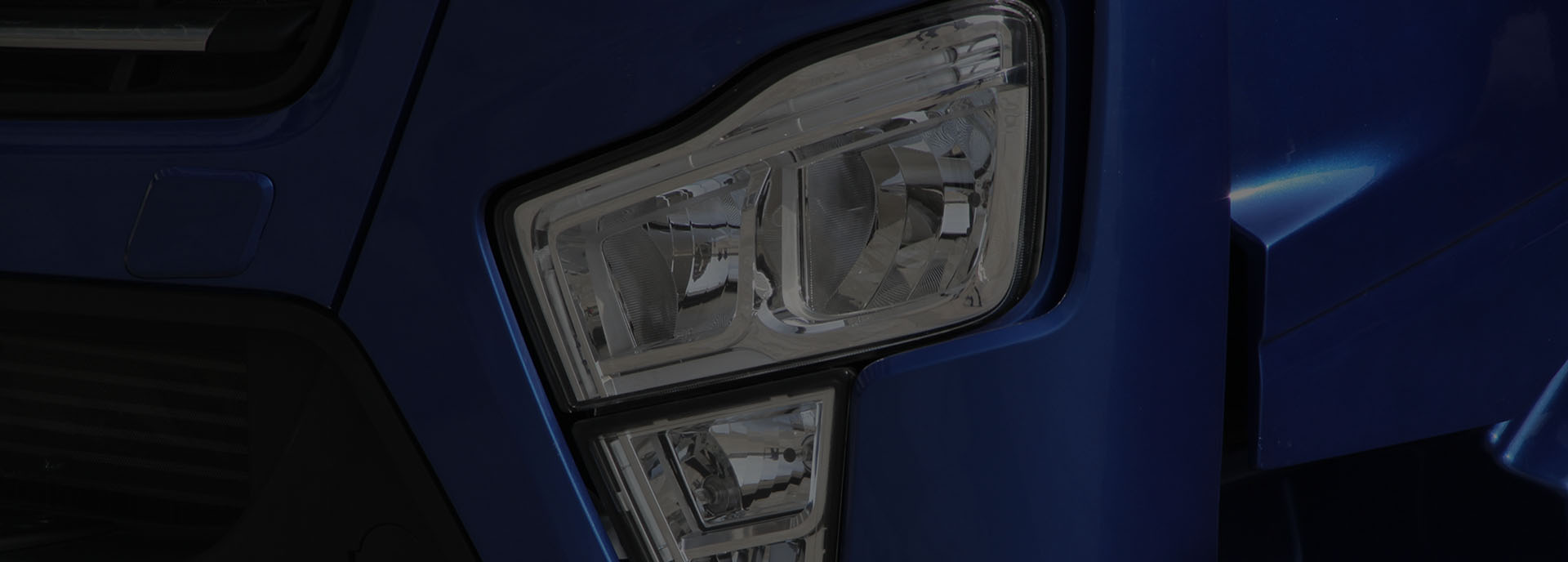

All weather vision enhancement technology: 360 degree environment monitoring system, starlight camera technology application, can distinguish environment target in 0.1 lux brightness. Adaptive dynamic view infrared camera can fully identify other vehicles and pedestrians.
New SSA platform body: New connection technology, H-type load-bearing longitudinal beam and other proprietary technologies, with torsion stiffness increased by 30%, passing the most stringent vehicle collision regulations of the European Union.
