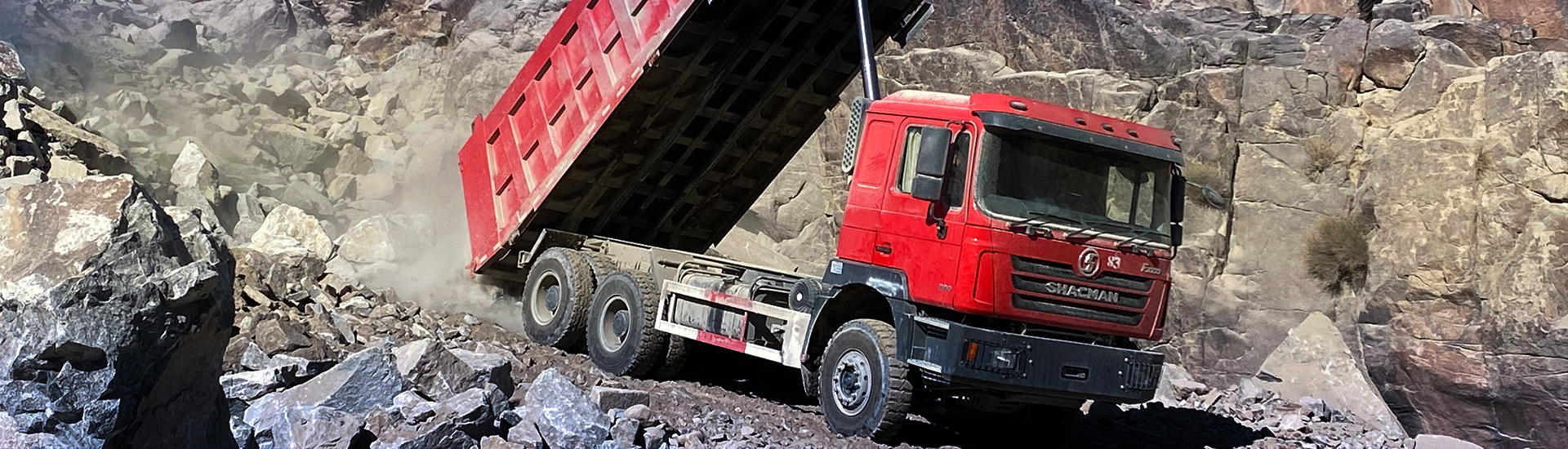

The F3000 Super edition dump truck is built for the toughest of working conditions. With improved performance, durability and even greater ground clearance, it can tackle even the harshest working conditions.

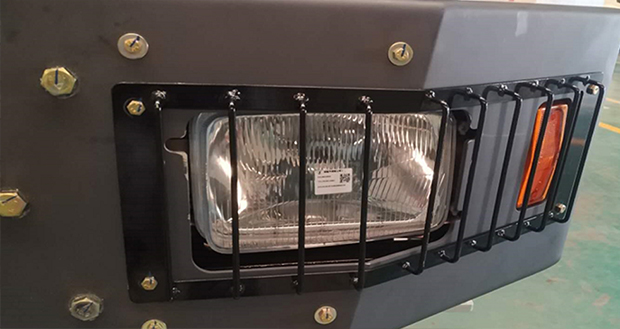

Upgraded bumper
The bumper is made of 5mm thick steel plate for armor like protection. The headlamp is embedded within the steel plate bumper for easy maintenance. The reinforced headlamp protective grid is matched to reduce the risk of headlamp being damaged by debris in bad road conditions.

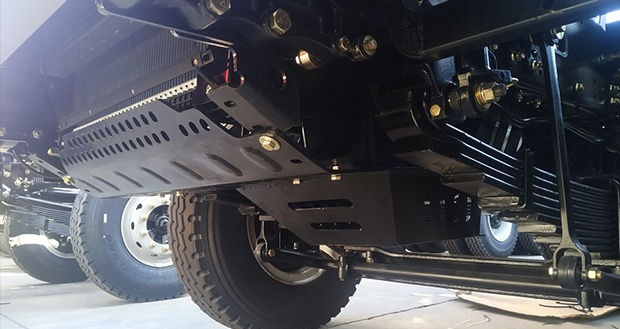

Oil pan protector
The enhanced oil pan protection completely covers the water tank and engine oil pan, which improves the strength and the adaptability of the vehicle under bad road conditions.

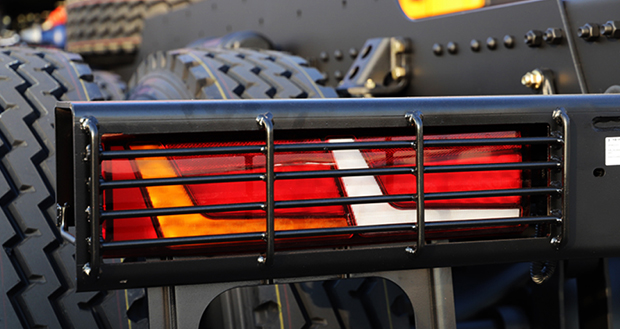

Redesigned tail lamp
In order to adapt to the bad road conditions, a new design of rear tail lamp is made. The tail lamp bracket adopts a thick and solid integral structure to reduce the risk of fracture. It is equipped with full LED tail lamp to extend the service life of the tail lamp

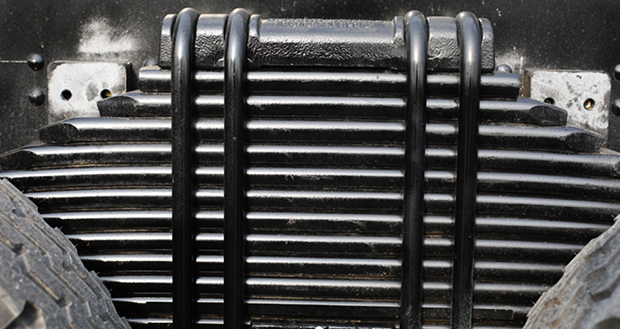

Strengthened suspension
The diameter of the U-bolt of the front leaf spring is upgraded to the thickest in the industry, up to 20 mm, which can improve the strength of the leaf spring bolt, reduce the fracture failure, and adapt to the bad working conditions. Strengthen the rear leaf spring improves the vehicle carrying capacity, which is suitable for overload transportation and bad road conditions in mining area.

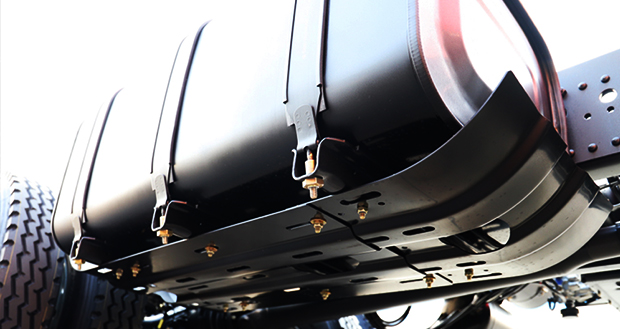

Newly designed fuel tank
400L standard liter flat iron tank is fixed with three widened tension belts to effectively prevent tank shaking and reduce failure. The lower part of the fuel tank is equipped with a 3mm steel plate protection guard, which can effectively protect the fuel tank from debris on the ground. The ground clearance of the super edition F3000 dump truck fuel tank is 590 mm above the ground

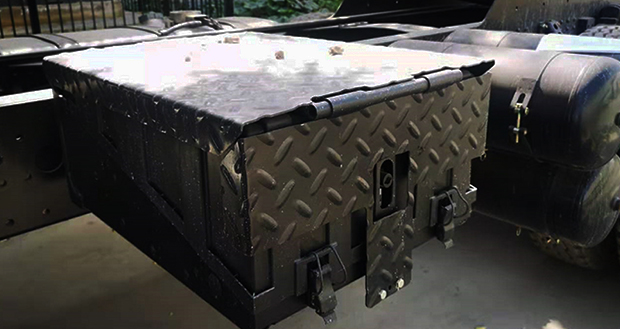

battery box protection
The battery box protection has the function of anti-theft and is impact resistant, to prevent theft, flying stones and other debris from damaging the battery box.
